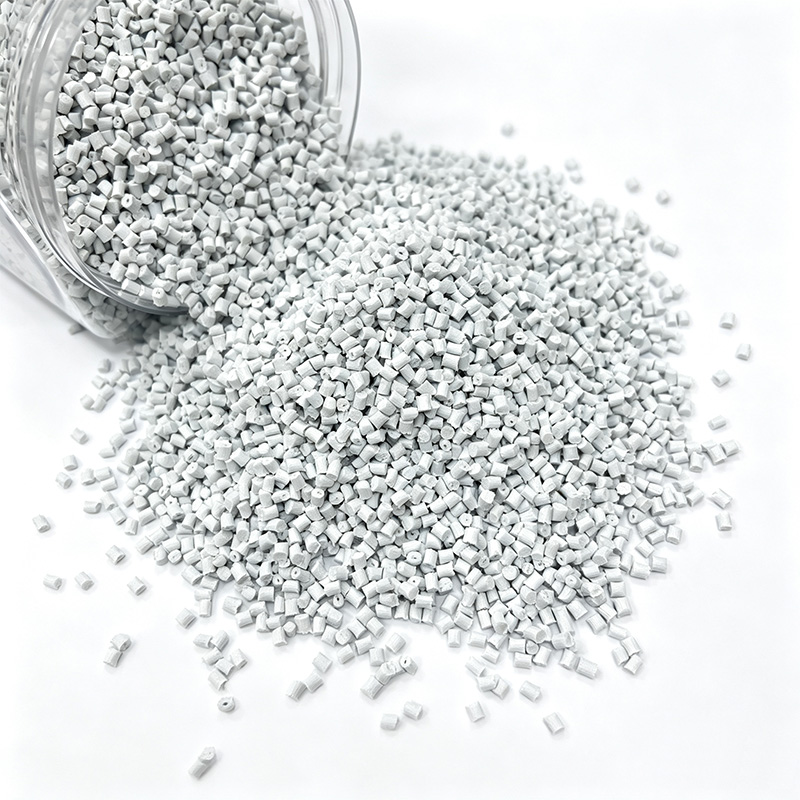

Modified PBT Plastic Pellets

Flame-retardant, reinforced PBT plastic granules

1) Meets UL94 V-0 flame retardancy standards at 1.5mm thickness; self-extinguishing upon removal of the ignition source;

2) Meets the 250V comparative tracking index (CTI) requirement;

3) Stable performance; increases finished product yield by approximately 5%.

Performance Test Standard Test Condition Unit Standard Value
Melt Flow Rate GB/T3682 260℃/2.16kg g/(10min) 25-42
Density GB/T1033.1 23℃ g/cm3 1.37-1.42
Residual Rate SH Method   % 24-27
Elongation at Break GB/T1040 50mm/min % ≥6
Tensile Strength GB/T1040 50mm/min Mpa ≥60
Bending Strength GB/T9341 10mm/min Mpa ≥75
Bending Modulu GB/T9341 10mm/min Mpa ≥2600
Cantilever Beam Notched Impact Strength GB/T1843 23℃ kj/m2 ≥ 5
Flammability Test GB/5169 Scorching Wire 650℃ PASS
Heat Deflection Temperature GB/T1634 1.8Mpa 130
Flame Retardant Properties UL94 3.2mm / HB
Eco-friendly REACH ROHS / PASS

Primarily used in sectors such as the electrical and electronics industry, automotive industry, industrial equipment, electrical appliances and home appliances, construction and building materials, telecommunications and IT, and precision manufacturing.

(Examples include: electromagnetic switches, plugs, sockets, fuse boxes, connectors, instrument transformers, circuit breakers, coil bobbins, BMS/OBC housings, charging guns, fiber optic connectors, server power modules, LED lamp bases, impellers, etc.)

Q: How can cracking or brittle failure during injection molding be resolved?

A: We offer formulation adjustments to enhance toughness and reduce internal stress, alongside recommendations for optimized injection molding processing parameters.



Q: Do the products hold relevant industry certifications?

A: Our materials meet industry standards such as UL flame retardancy, ISO medical compliance, automotive specifications, weather resistance, and antistatic properties. We provide comprehensive physical property reports and test certificates to satisfy market entry requirements for sectors including home appliances, automotive, medical, and new energy.



Q: Are the materials suitable for injection molding and extrusion?

A: All modified pellets are designed with flow characteristics compatible with standard injection molding machines and extruders. They offer stable molding, low shrinkage, and resistance to delamination or cracking, making them suitable for manufacturing housings, structural components, optical parts, sheets, and more.
